Fixed Access Reference Platforms

D2 is working with a number of SoC partners to develop integrated software solutions for end-point telecom products such as Terminal Adaptors, IP phones, WiFi handsets, VoIP residential gateways, base stations and access points. These partnerships lead to reference designs that include the hardware as well as integrated software for a working application. These reference designs serve as a basis for final end product design and development. Contact D2 Sales for more information and a complete list of vPort reference designs.

Example reference designs and sample application diagrams:


Analog Telephony Adaptor Reference Platforms

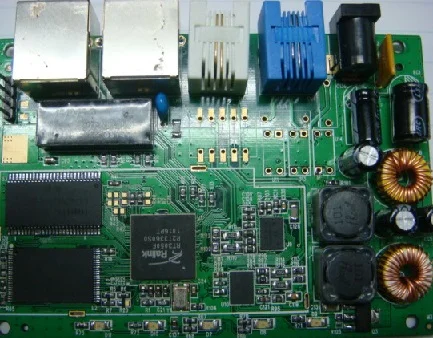

  • SIP ATA , VoLTE ATA


SOC: QUALCOMM, MEDIATEK and GCT

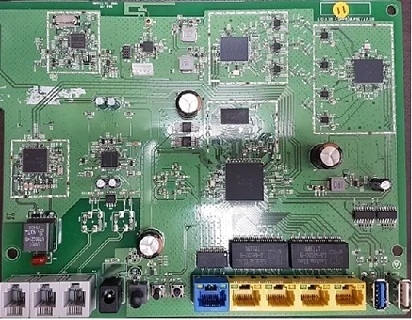

  • DECT+VoIP ATA/Gateway


SOC: LANTIQ/INTEL


Broadband VoIP Gateway Reference Platforms

  • 10/100Base-T Ethernet/Gigabit Ethernet , Fiber Interface WAN


SOC: CAVIUM



SOC: QUALCOMM-ATHEROS

  SOC: QUALCOMM-ATHEROS



SOC: NXP

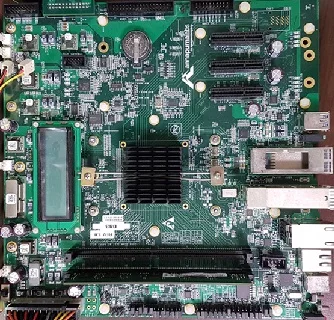

SOC: ANNAPURNA LABS


Broadband Wireless VoIP Gateway Reference Platforms

  • WiFi 11 ac/a/b/g/n


SOC: QUALCOMM-ATHEROS, BROADCOM, and MEDIATEK


xDSL+WiFi+VoIP Triple-Play IAD Reference Platforms

  • ADSL/ADSL2+ , VDSL/VDSL2, G.Fast

Fiber VoIP Gateway Reference Platforms

  • End-to-End GigE , EPON , GPON


SOC: Broadcom and Cortina

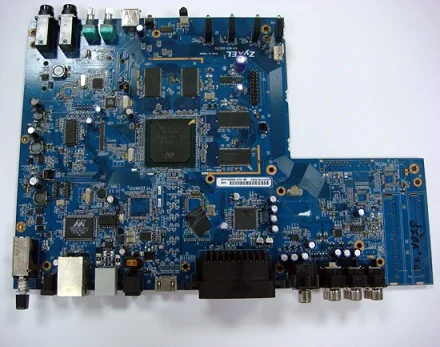

IPTV Set-top Box Reference Platforms

  • VoIP + Video Conference


SOC: ST-Micro

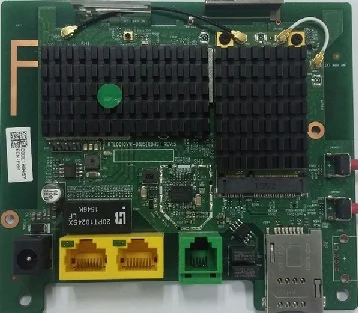

VoIP + WiFi Co-System Reference Platforms

  • Enable VoIP+WiFi to existing product


SOC: Mediatek



SOC: QualcommAtheros, Broadcom, and more




4G/LTE-based Broadband VoIP/VoLTE Gateway Reference Platforms

  • Enable VoIP & VoLTE services into 4G/LTE Broadband Gateway


SOC: Qualcomm


SOC: GCT
