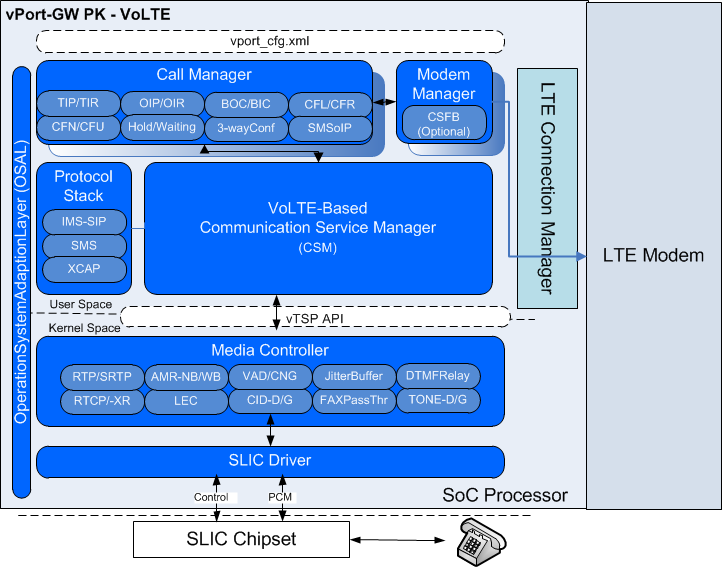

vPort™GW VoLTE

VoLTE Gateway

Designed for flexibility and portability, vPort™GW VoLTE can execute on both RISC and CISC platforms under industry-leading operating systems. It has been optimized for ARM, MIPS, x86, PowerPC, and other processor architectures under the VxWorks, Nucleus, Linux and Android operating systems. vPort™GW VoLTE incorporates a state-of-the-art virtual DSP architecture, which implements voice DSP functions in software ("soft DSP") on a general purpose CPU core. The Voice over LTE (VoLTE) IMS SIP stack is fully IR.92 compliant. It also provides SMS over IP and many other rich supplemental services such as TIP/TIR, OIP/OIR, CFN/CFU. vPort™GW VoLTE has been tested and fielded with numerous commercial IMS core servers including ALU / NSN, Ericsson, Huawei, ZTE, Genband, Mavenir, and others.

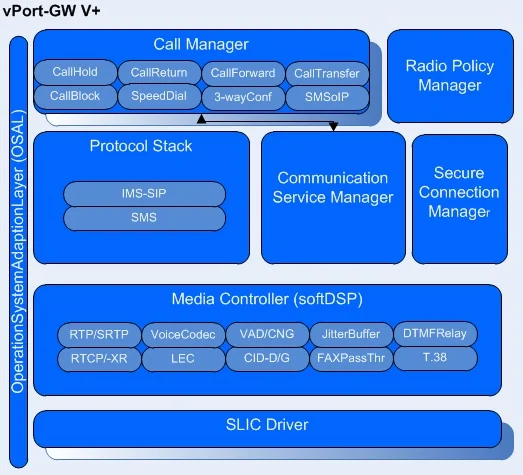

vPort™GW V+

VoLTE / WiFi Calling Terminal

D2 Technologies’ vPort™ GW solutions deliver high voice quality, efficient system implementation, and broad OS and IC support. With vPort™GW V+, OEMs and ODMs can quickly and cost-effectively develop a broad range of VoWiFi / WiFi Calling-enabled devices. It supports multiple VoWiFi services, such as ePDG tunneling, EAP-AKA / EAP-TLS authentication, and IMS-compliant SIP signalling. In addition, by implementing all voice DSP functions in software ( "SoftDSP") which operates on a wide range of general purpose CPU cores, vPort™GW V+ lowers system costs by eliminating hardware DSP, and provides portability across a wide range of OS (Linux, VxWorks, Threadx, and more) and IC (ARM, MIPS, x86, PowerPC and more) platforms. Portablity of vPort™GW to different customer hardware and software platform is accomplished with a highly modular architecture, with multiple abstract software layer,s. Higher layers allow easy customization, and lower layers are designed to minimize latency.


vPort™GW VoIP

VoIP Gateway

D2 Technologies’ vPort™ GW solutions deliver high voice quality, efficient system implementation, and broad OS and IC support. With vPort™GW, OEMs and ODMs can quickly and cost-effectively develop a broad range of VoIP-enabled CPE devices. It is a flexible platform that enables multiple services, such as SIP-based VoIP and IMS-based VoIP. In addition, by implementing all voice DSP functions in software ("SoftDSP") which has been optimized on a wide range of general purpose CPU cores, vPort™GW product lowers system costs by eliminating hardware DSP, and provides portability across a wide range of OS (Linux, VxWorks, Threadx, and more) and IC (ARM, MIPS, x86, PowerPC and more) platforms. Portability of vPort™GW to different customer hardware and software platform is accomplished with a highly modular architecture, with multiple abstract software layers. Higher layers allow easy customization, and lower layers are designed to minimize latency.


vPort™GW CSFB

CSFB Gateway

D2 Technologies’ vPort™ GW solutions deliver high voice quality, efficient system implementation, and broad OS and IC support. With vPort™GW CSFB, OEMs and ODMs can quickly and cost-effectively develop a broad range of Circuit Switch FallBack(CSFB) enabled devices. It is a flexible platform that supports multiple 3G and 4G / LTE modems, such Qualcomm, Mediatek, and others.

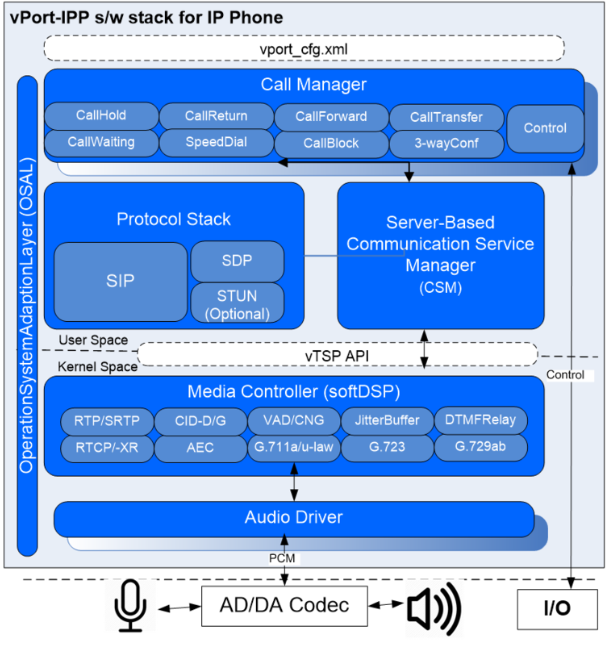

vPort™ IPP

IP / Video Phone

The support of multiple processor architectures and Operating Systems, along with the unique SoftDSP implementation, allows OEMs to choose best-of-breed components and avoid being locked into a particular hardware platform or architecture for IP Phone and Video Phone product. It also simplifies software development, support and maintenance, since all the software operates under a single environment using one set of tools. Because of its modular architecture, vPort™ IPP can be quickly modified for customer-specific IP Phone or Video Phone product.


vPort™ MC

Multi-Cores SoftDSP for High Density Voice Channels

Multi-cores SoftDSP Solution is a software-based DSP processing engine running on a multi-cores CPU processor that provides the perfect cost-effective software solution offering the High Density VoIP Channels Processing. vPort-MC software is designed as a multiple tasks architecture that each CPU core of multi-cores processor could run one vPort-MC instant providing as many voice channel processing as possible.


vPort™ B2BUA

Back-to-Back User Agent For SIP Service

vPort B2BUA is a SIP Proxy Service with customized IP-PBX features and FXS/FXO ports supported.

Under the broadband service offered by new 5G mobile network, vPort B2BUA is the perfect solution for the 5G-to-Home service architecture having the combination of 5G Outdoor Unit (ODU) and broadband Indoor Unit (IDU).


vPort™ MX

Mobile Extension Terminal Adaptor

vPort MX enable Mobile Adaptor to turn the legacy fixed line service into an mobile OTT service. It features that (1). Universal mobility: receive call and make call anywhere in the world as if you are at home or office. (2). Turn POTS (plain old telephone service) into a smart home/office communication hub. (3). Provide voice messaging, call screening, and other “personal calling services” or “business services”. (4).Turn a low cost equipment business into an OTT service with subscription and/or advertising revenue via D2 MX Cloud. (5).Leap frog mobile services, which is expensive when roaming, and unable to innovate OTT services.


vPort™ 5G

Voice Over 5G

vPort 5G provide the next generation of voice/video services for all incoming various network deployments including (1).VoNR: Voice over New Radio (2).EPS FB: EPS Fallback (3).VoeLTE: Voice over eLTE and (4).RAT FB: Radio Access Technology Fallback


vPort™ SDK

VoIP / VoLTE / WiFi Calling SDK

D2 Technologies’ vPort solutions deliver high voice quality, efficiently tuned system implementation, and broad OS and IC support for VoIP, VoLTE, WiFi Calling solutions. With vPort SDK, OEMs and ODMs can quickly and cost-effectively develop a broad range ofcustom and yet cost efficient VoIP-enabled devices. For more details, please contact sales@d2tech.com
